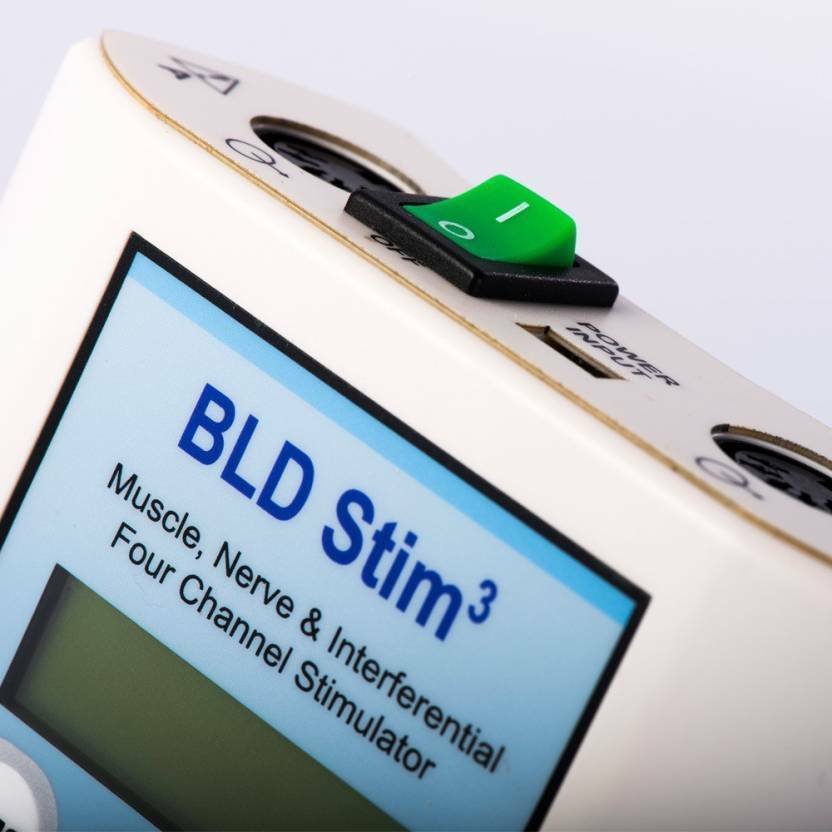

Mini 4 Channel IFT + EMS + NMS Machine Pain Relief : STIM3
Mini 4 Channel IFT + EMS + NMS Machine Pain Relief : STIM3 - Image 2
Mini 4 Channel IFT + EMS + NMS Machine Pain Relief : STIM3 - Image 3
Mini 4 Channel IFT + EMS + NMS Machine Pain Relief : STIM3 - Image 4
Mini 4 Channel IFT + EMS + NMS Machine Pain Relief : STIM3 - Image 5
Mini 4 Channel IFT + EMS + NMS Machine Pain Relief : STIM3 - Image 6

Mini 4 Channel IFT + EMS + NMS Machine Pain Relief : STIM3

Original price was: $500.00.Current price is: $350.00.

Technical Specifications
• 2/4 separate channels, 4/8 Electrodes.
• Waveforms: Sine Wave & Symm. Bi-Phasic Square Wave.
• Modes:
Inter..ferential: IF LOW, IF HIGH, IF WIDE & IF FIXED.
T.. -E…- N.. -S: Conventional, Burst and Modulation.
EMS: Conventional and Russian.
• Frequency:
Interfential (IFT) Carrier: 5000 Hz.
Sweep: 1-10 Hz. (Low), 80-150 Hz. (High), 1-250 Hz.           (Wide), 10-200 Hz. (Fixed).
E..M…S/T..E..N..S : 1-150 Hz.
Russian : 2500 Hz. [(Carrier) / 50 Hz. (Beat)].
• Pulse Width:50-250 ?S(TENS);200-450 ?S (EMS).
• Ramp Up/Down: 1-10 Sec.
• Contraction / Relaxation Time: 1-30 Sec.
• Output Voltage: 50 V pp.
CES:.
• Output Current:100mA peak to peak on 500 ? load.
• Treatment Time: 1-60 Min.
• Power: 1.2×4 AA Battery / 5.5 V Adaptor.
• Electrical Type: TYPE BF

Category: Tags: , , , , , , , , , , Brand:

SALIENT FEATURES

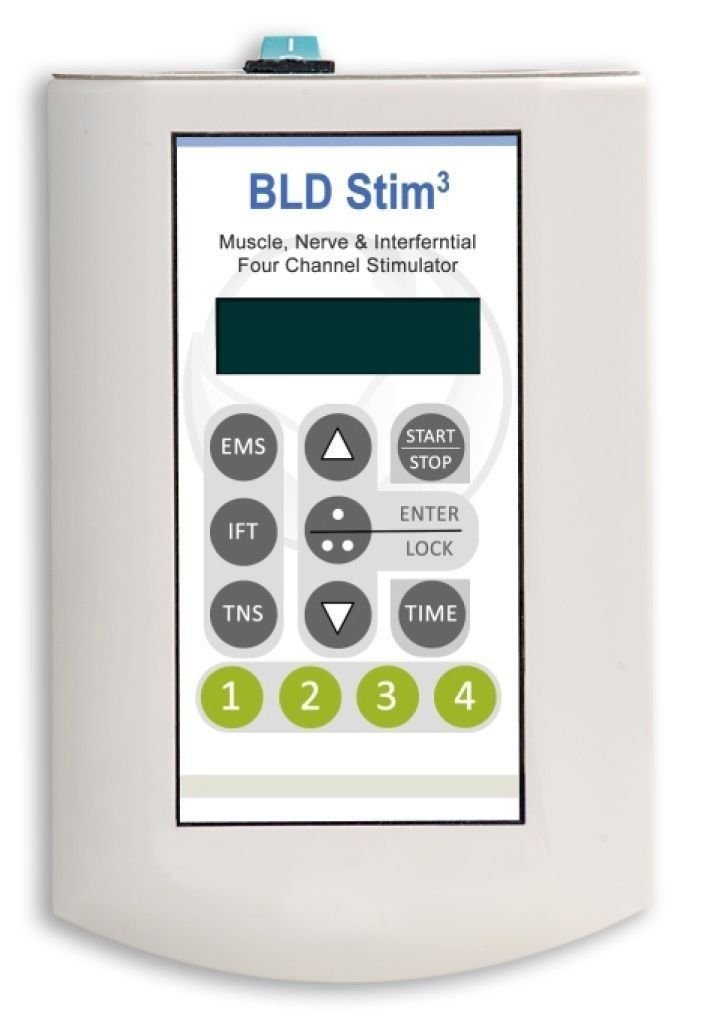

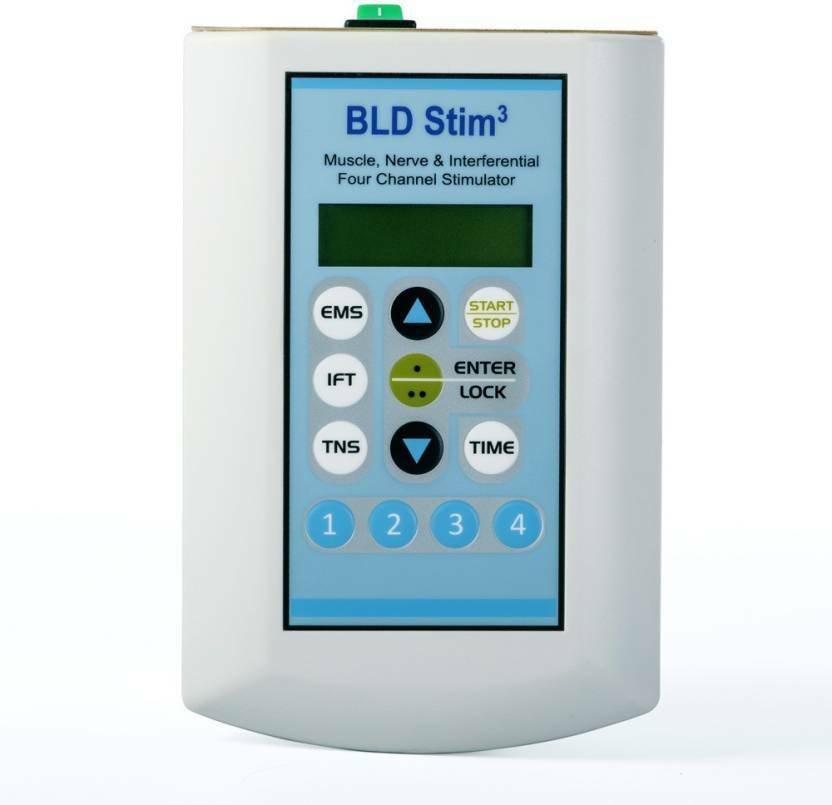

Matrix LCD Display.
• Intensity Controls For Each Channel.
• Low Battery Indicator.
• Treatment Lock-Out.
• Compliance Monitor.
• Lock Key: Saves the selected treatment parameters and
locks out any other input.
• 1 Year Standard Warranty

Available voltage: 110V/220V, 50hz AC

• Symptomatic relief of chronic and intractable pain.
• Adjunctive treatment of post-surgical and post-traumatic acute pain conditions.
• Multiwaveform device to deliver different treatments.
• Handy portable device.
• 2 different people can be treated simultaneously.
• Facility of locking a particular treatment for patient.
• Can be operated via battery as well as with adapter.

Standard Accessories

Self Adhesive Electrode

Oval Black Bag

Lead Wire

Adaptor 5.5V 1.5 Amp

Instruction Manual
