Features

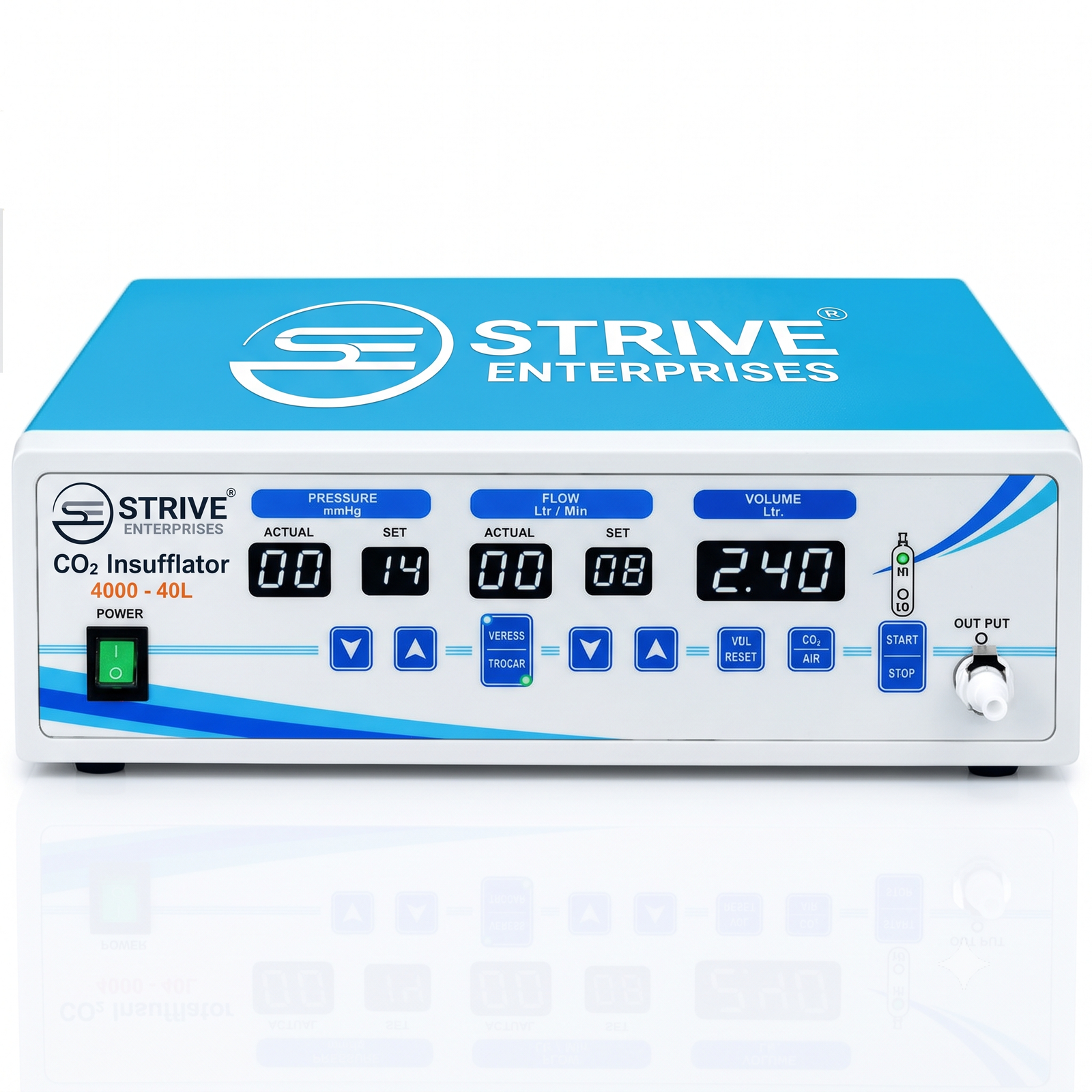

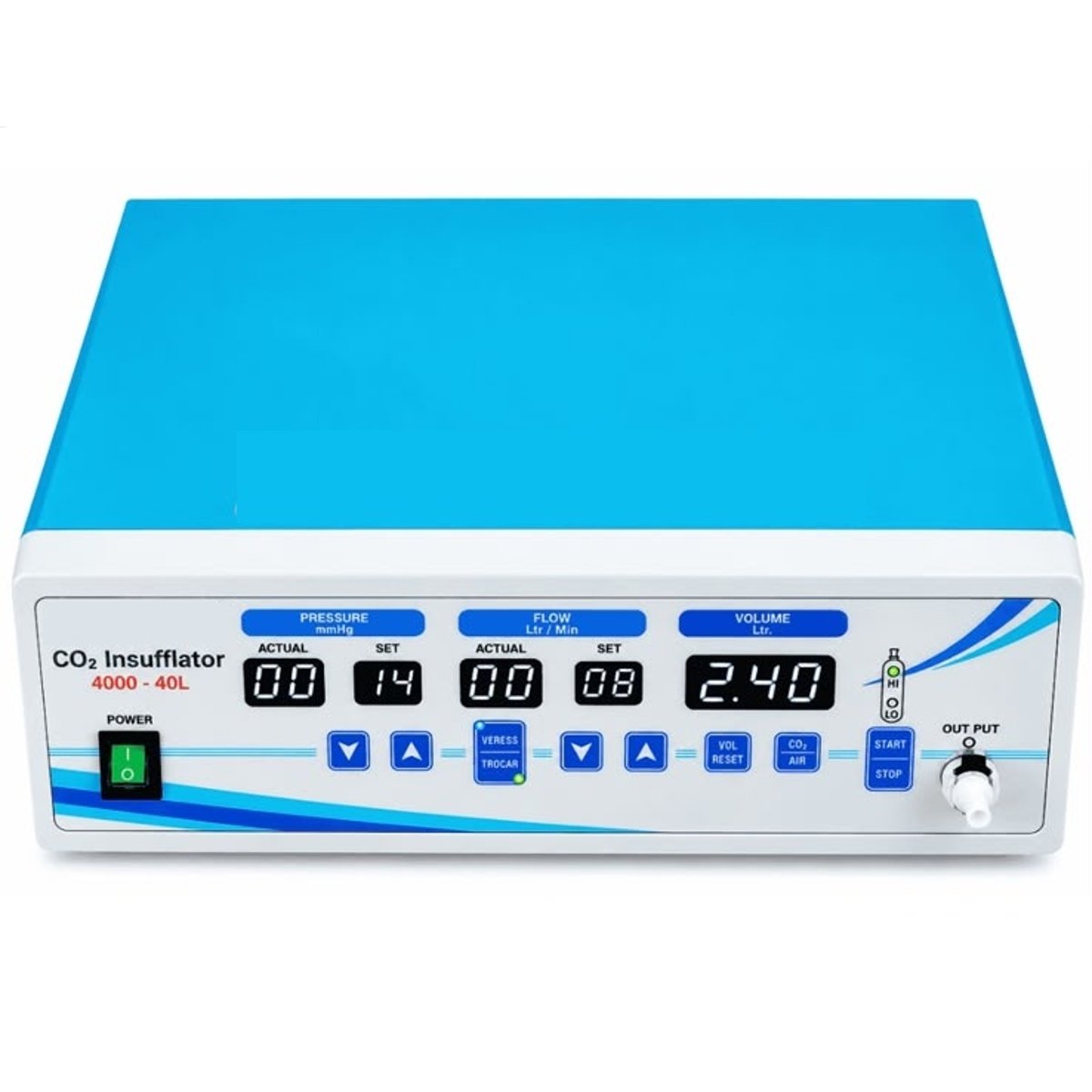

40L CO₂ insufflation system

Designed for laparoscopic and urological procedures

Adjustable insufflation pressure: 4–30 mmHg

Flow rate: 1–30 L/min

Veress and Trocar modes

Microcontroller-based control technology

Separate digital display for set and actual pressure

Separate display for set and actual flow

Display for gas consumption and temperature

Rapid CO₂ gas delivery and responsive operation

Integrated over-pressure alarm and pressure-release system

Feather-touch keyboard

Compact and lightweight construction

Durable metal enclosure

Approximate weight: 2 kg

Available with standard accessories

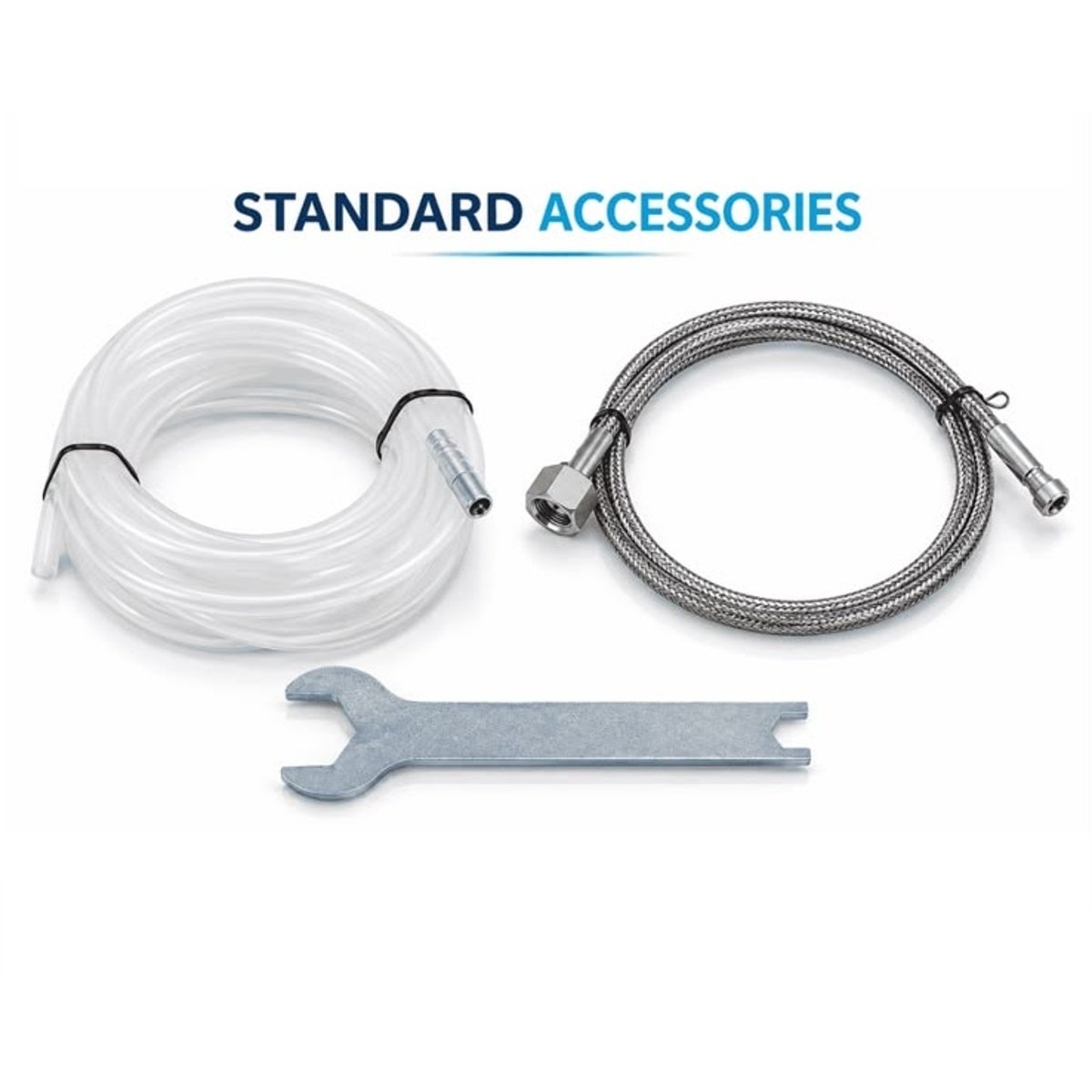

Standard Accessories

The standard accessory set can include:

CO₂ connecting tube

High-pressure braided gas hose

Spanner/tool for connections

Other standard components as supplied with the selected configuration



Applications

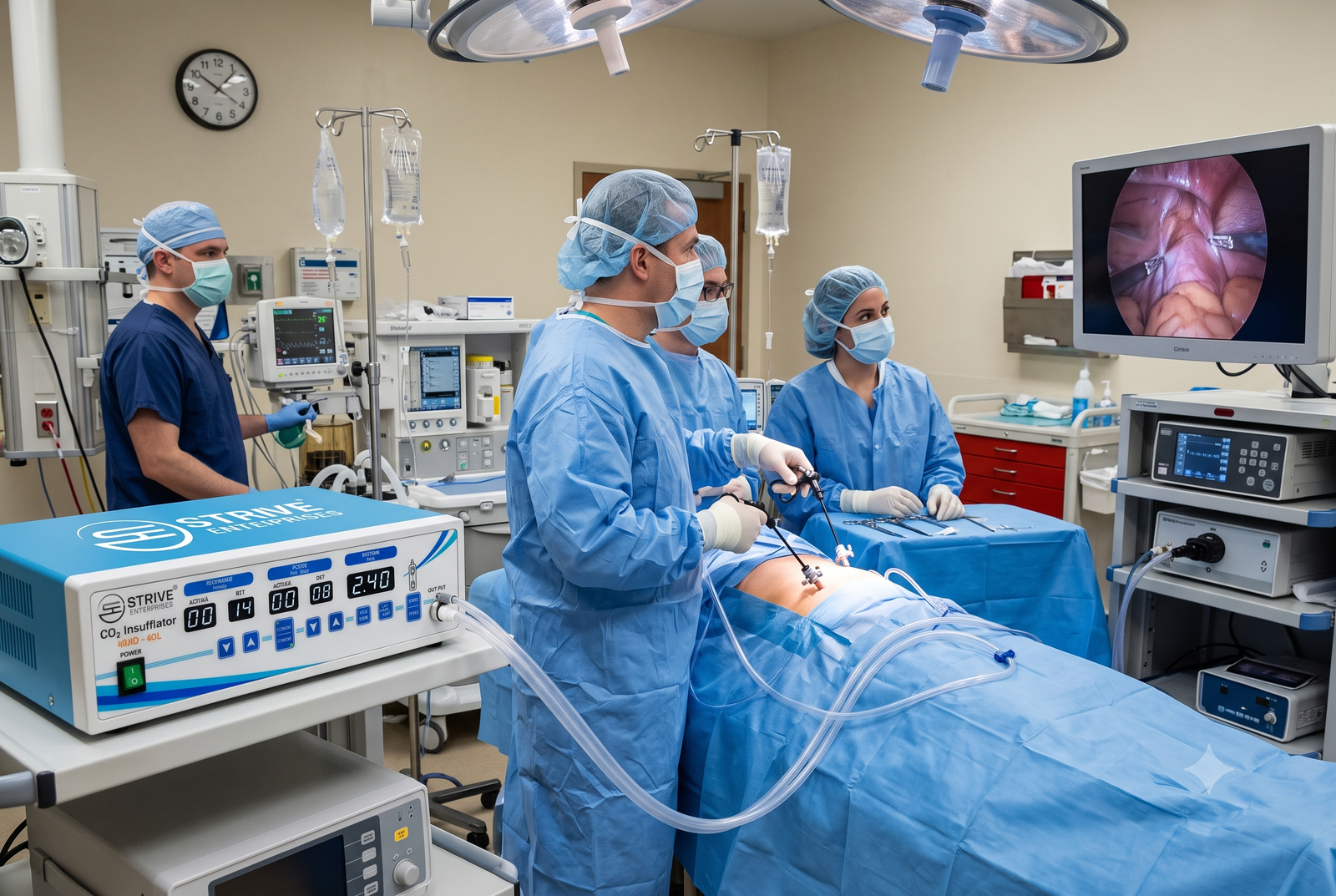

The 40L CO2 Insufflator is intended for use in procedures requiring controlled CO₂ insufflation, including:

Laparoscopic surgery

Urological laparoscopic procedures

General minimally invasive procedures

Operating-room insufflations applications

Use should be according to the applicable clinical protocol, product documentation and trained medical-professional requirements.
