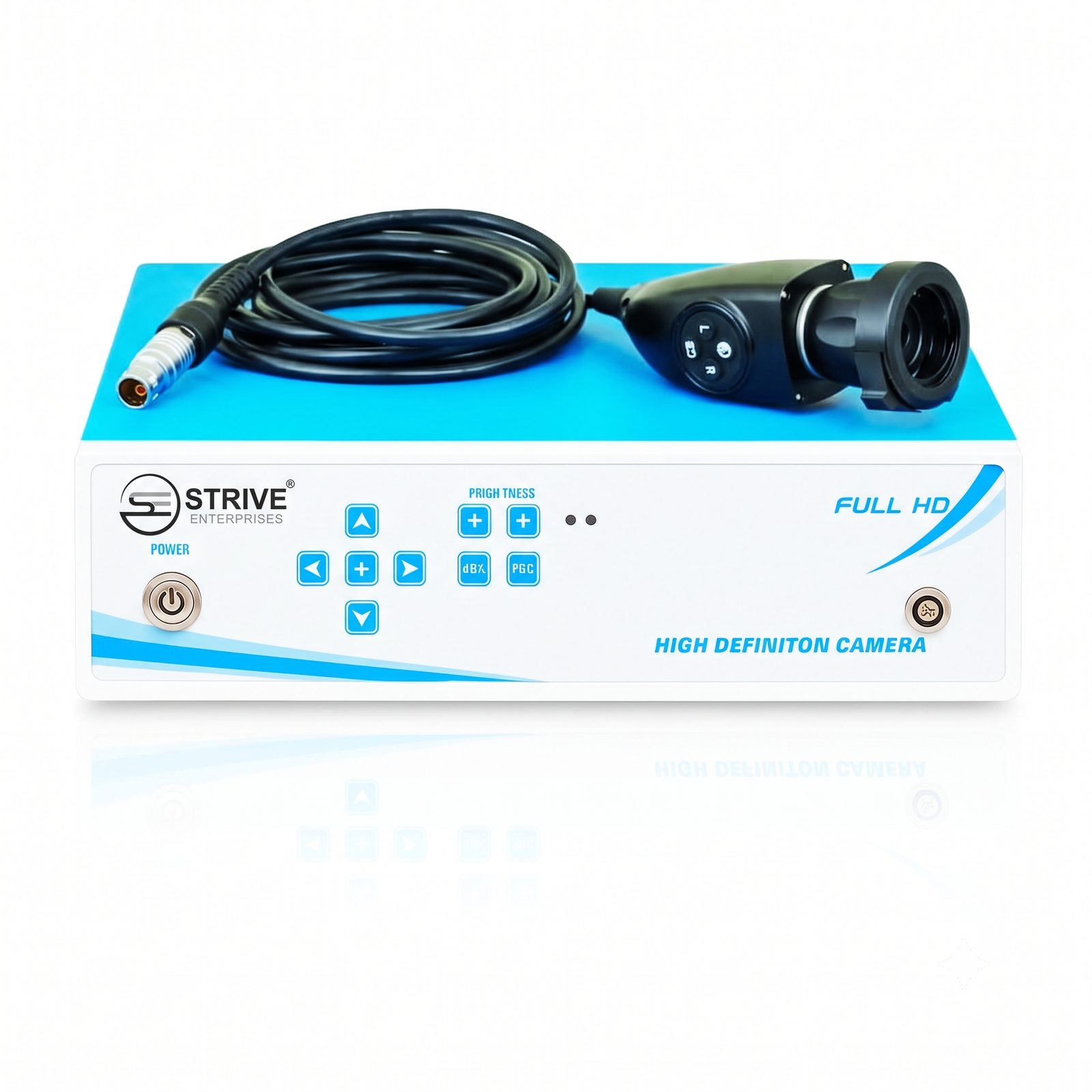

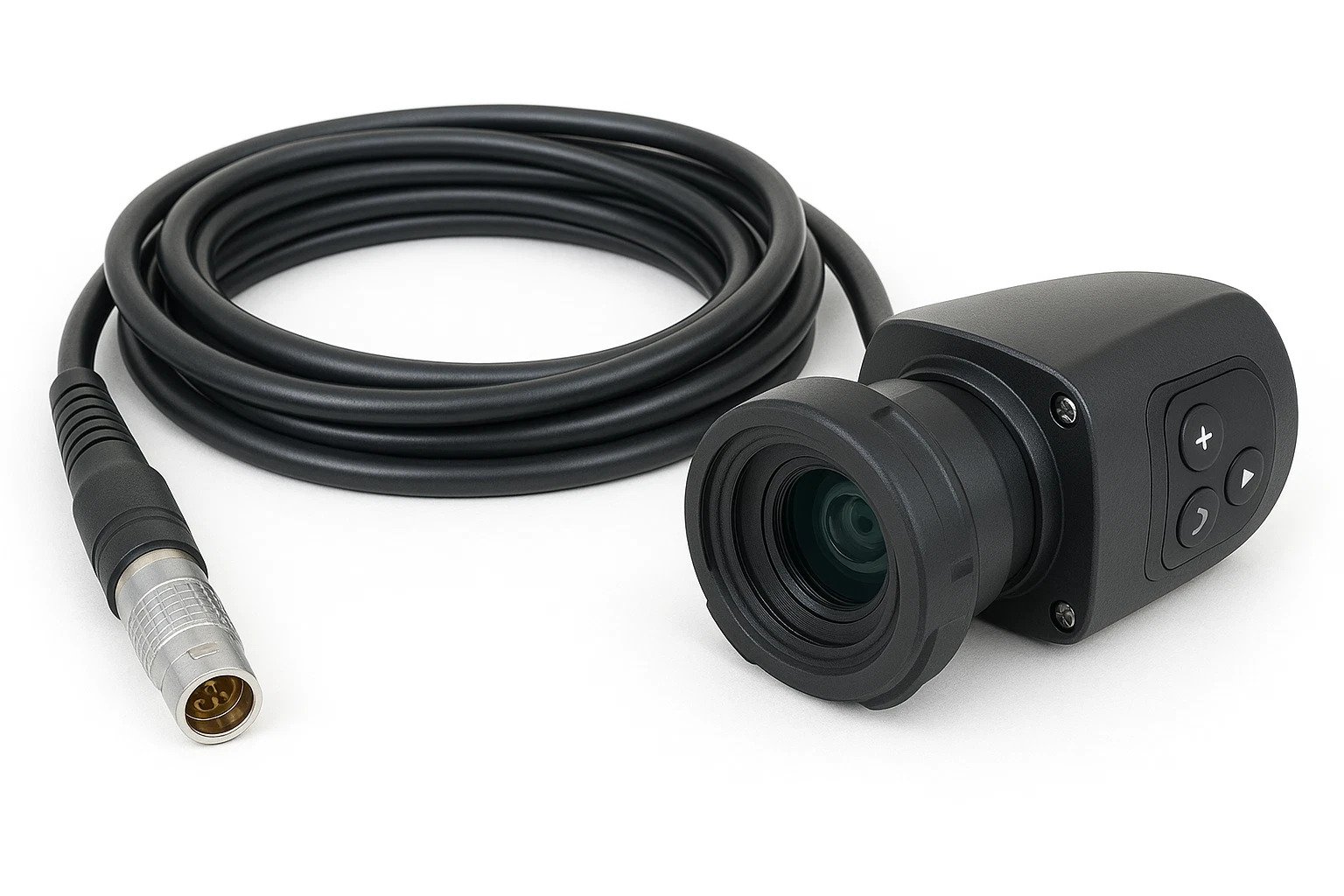

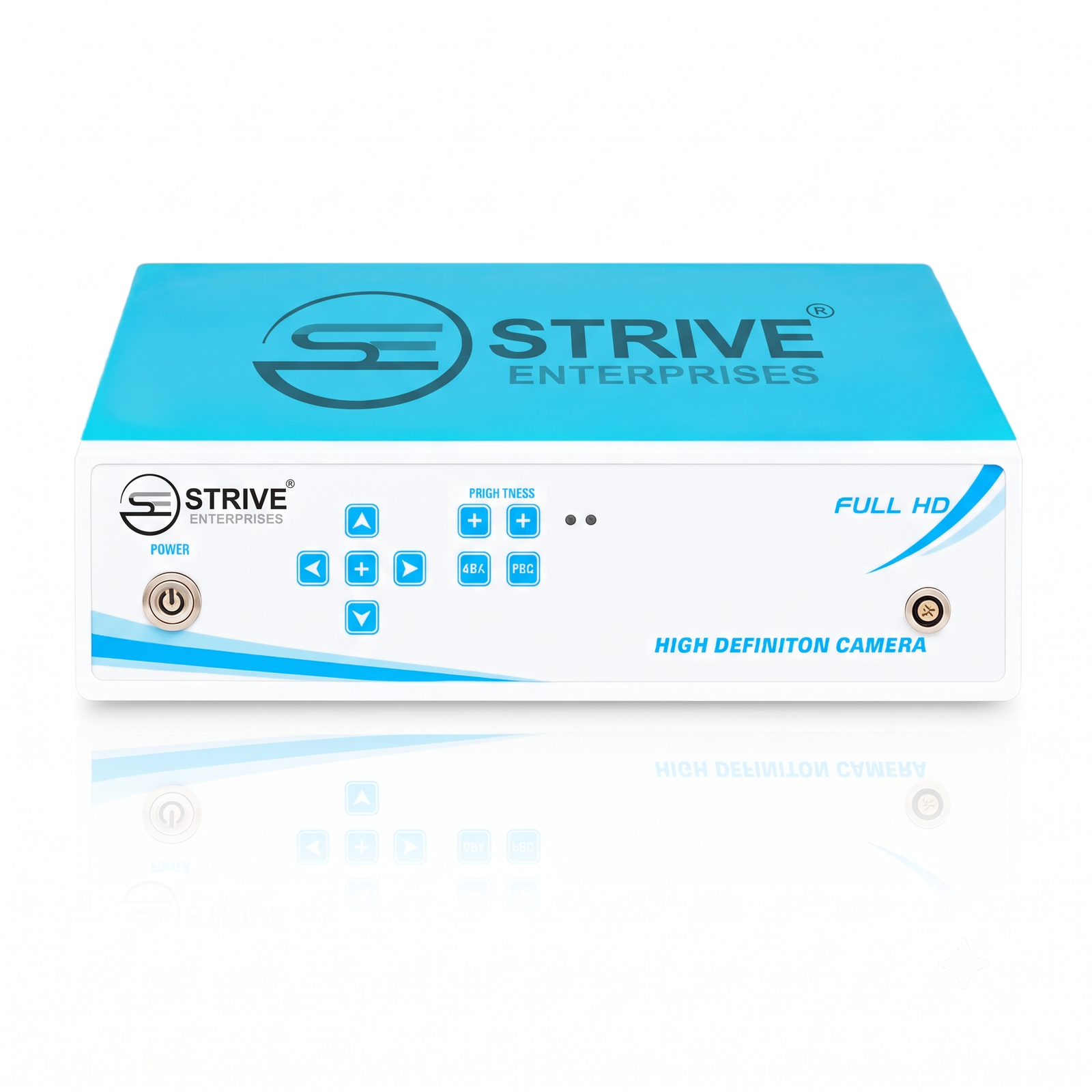

The STRIVE CLARIO Full HD Endoscopy/Laparoscopy Camera System is a compact digital imaging solution designed for high-definition visualization during endoscopic and laparoscopic procedures.
The system features a 1/2.8″ CMOS sensor with 2.6 megapixels and provides 1920 × 1080 Full HD resolution for clear and detailed surgical imaging.

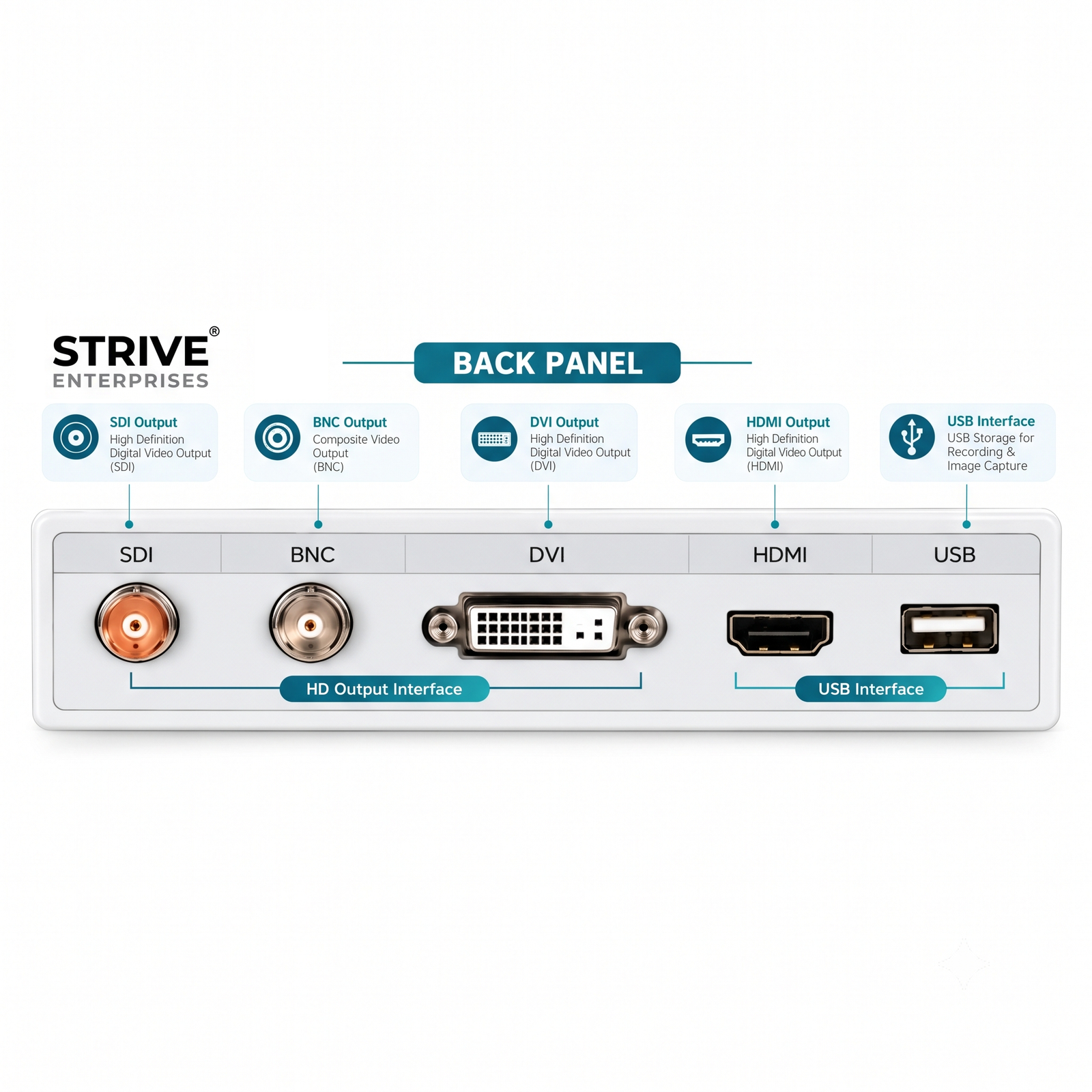

Multiple video output interfaces including 3G-SDI, DVI, VGA, HDMI and USB provide flexible connectivity with compatible medical displays and recording systems.
Applications
Suitable for professional medical imaging environments including:
Laparoscopy
Endoscopy
Gynecology
Urology
Hepatobiliary Surgery
Orthopedics
Otorhinolaryngology
Neurosurgery
Cosmetic procedures
General endoscopic examination
Medical teaching and consultation
Technical Specifications
Camera
Sensor: 1/2.8″ CMOS
Pixels: 2,600,000
Resolution: 1920 × 1080
Definition: 1200 Lines
Minimum Illumination: 0.3 Lux
Image Controls
Gain: 0–30 Steps
Brightness: 0–25 Steps
Colour Gain: 0–25 Steps
Sharpness: 0–20
Contrast: 0–3 Steps
White Balance: Auto
Exposure: Custom 3-Stage
DNR: 0–3 Steps
Video & Connectivity
3G-SDI
DVI
VGA
HDMI
USB
Rigid/Flexible Scope Support
Physical
Camera Cable: 2.8 m
Dimensions: 290 × 260 × 85 mm
Weight: Approx. 2 kg
Power: 25W
Input: AC 220V/110V ±10%
