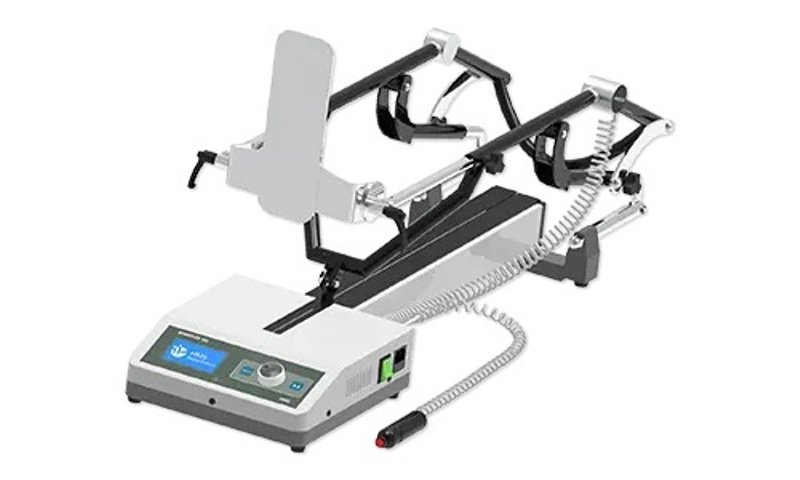

Continuous Passive Motion Machine Knee Pain Relief Machine : KNEEFLEX® Es

The benefits of CPM for Healing Cartilage

• Enhanced nutrition and metabolic activity
• Accelerated healing of articluar tissues
• Regeneration of cartilage
• The benefits of CPM for healing tendons
• Restoration of the tendon’s gliding surface
• Greater mean breaking strength of the tendon
• Enhanced intrinsic healing through synovial diffusion
• Prevention of adhesion formation
• Model : Kneeflex Es
• Design Type : Anatomical
• Operation Mode : Electrical
• Target Body Part : Knee, HIP
• Range of Motion – -10^° extension – 120^° flexion(1^° settings)
• Pauses – 0 – 99 seconds (extension and flexion)
• Speed – 50^° – 110^° / minute in 10 steps
• Treatment Time – 5 min – 3 Hrs
• Length Range – Calf 40 – 62 cm
  Thigh 28 – 46cm
• Force Reversal – 10 – 30 kgs in 10 steps
• Remote Program Feature:
• Progressive range of motion Eliminates time consuming adjustments by automatically increasing the programmed flexion angle by 0^° to 20^° for the total treatment time
• TECHNICAL DATA:
• Mains Voltage – 100 – 240V / 50 or 60 Hz
• Safety Class – Class I, Type B (IEC 60601 -1)
• Dimensions – L x B x H – 90 x 29.5 x 25 cms
• Weight – 14.75 Kgs
• Max Patient Weight – 160 kg
