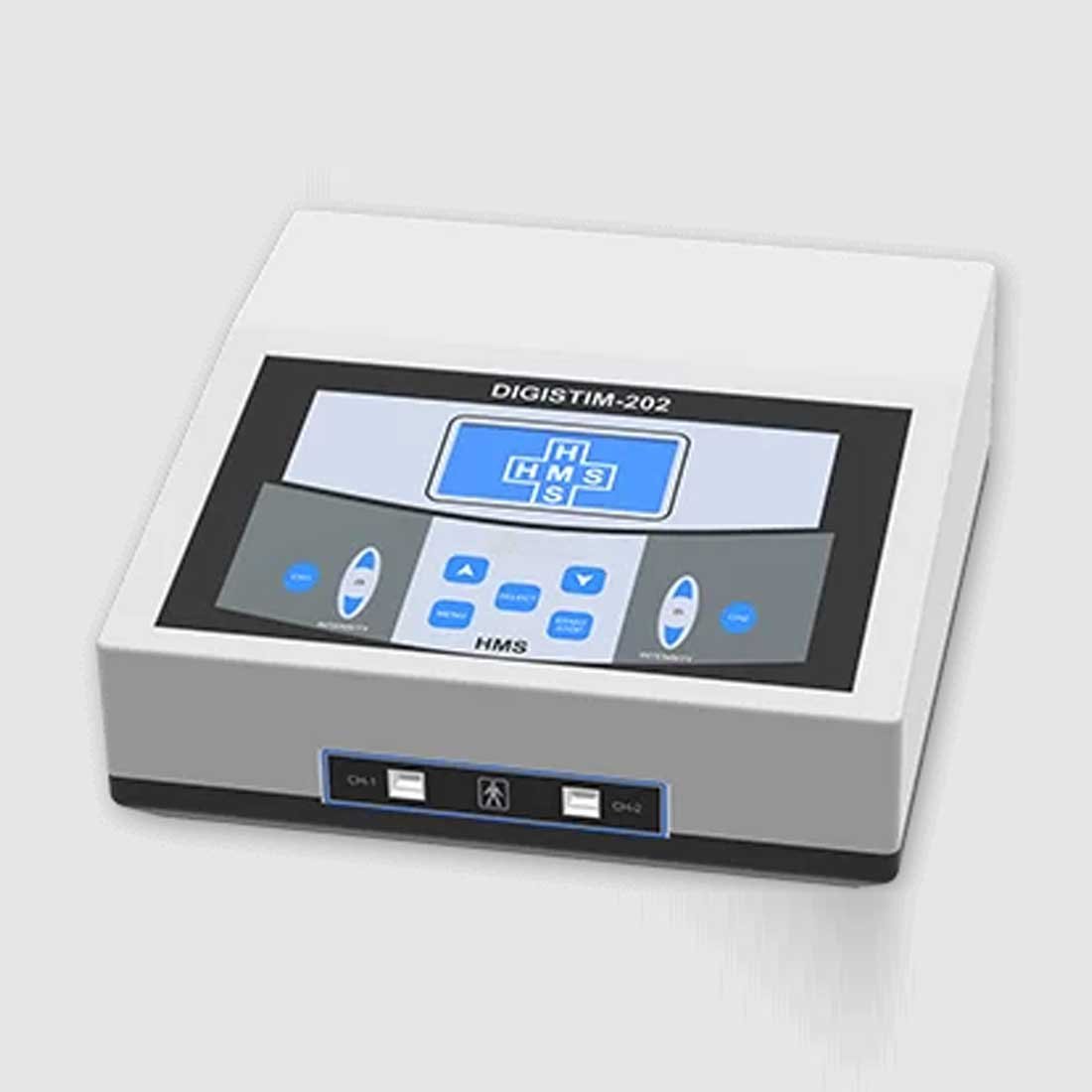

Computerised Dual Stimulator Combo Therapy : DIGISTIM 202

FEATURES

Micro controller based circuitry LCD display for therapy type and treatment time Independent two channel ( At a time two different treatment can do for two patients ) 30 User memory User friendly with soft touch key functions Light weight plastic moulded cabinet

SPECIFICATIONS

Treatment Modes :  Stimulator, TENS, Diadynamic and FES

Output Current: 1-100mA

Timer: 0-99min

Stimulator

IG Therapeutic:  30-300mSec (1mSec Step)

IG Diagnostic:  01,.03,.3,1,3,10,30,100,300,1000 mSec

Pulse Type:  Square and Triangular

Surge Faradic

Freq./ P.width: 50Hz/ 0.7mSec

Surge ON Time: 1-10Sec

Surge OFF Time: 1-10Sec

TENS

Frequency: 2-250Hz in (1Hz Step)

1. Width: 20-250Sec (1m Sec Step)

FES

Frequency:  20-120Hz (1Hz Step)

ON Time: 1-10Sec

OFF Time: 1-10Sec

Ramp Up/Down:  1-10Sec

Technical Data

Main Voltage: 90-270/50-60 Hz

Dimension: LxBxH-23x20x8 cms

Weight: 1.6Kg
